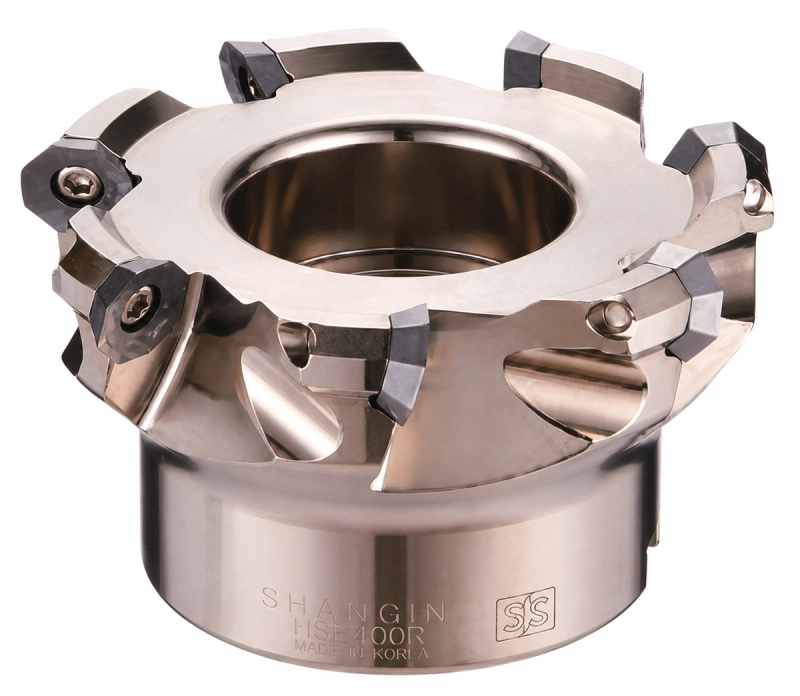

Shangin TFM 43° Face Milling Cutter (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers
🔍 Click to zoom Dimension key
ØD Cutting diameter
Ød Arbor bore diameter — Not a shank OD — this model mounts on an arbor. Not currently stored; see the spec sheet PDF.
L Overall length
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
43° Cutting angle — Fixed 43° geometry — encoded in the product name/order code.
50
63
80
100
125
160
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | D | OAL | TEETH | ACCEPTED INSERT |
|---|---|---|---|---|
| TFM435R-05005-22.0 | 50 mm | 40 | 5 | OFMT05T3 TN-ML |
| TFM435R-06306-22.0 | 63 mm | 40 | 6 | OFMT05T3 TN-ML |
| TFM435R-06306-25.4 | 63 mm | 50 | 6 | OFMT05T3 TN-ML |
| TFM435R-08007-27.0 | 80 mm | 50 | 7 | OFMT05T3 TN-ML |
| TFM435R-08007-25.4 | 80 mm | 50 | 7 | OFMT05T3 TN-ML |
| TFM435R-10008-32.0 | 100 mm | 50 | 8 | OFMT05T3 TN-ML |
| TFM435R-10008-31.75 | 100 mm | 50 | 8 | OFMT05T3 TN-ML |
| TFM435R-12509-40.0 | 125 mm | 63 | 9 | OFMT05T3 TN-ML |
| TFM435R-12509-38.1 | 125 mm | 63 | 9 | OFMT05T3 TN-ML |
| TFM435R-16011-50.8 | 160 mm | 63 | 11 | OFMT05T3 TN-ML |
Compatibility
Compatible inserts
OFMT05T3 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
