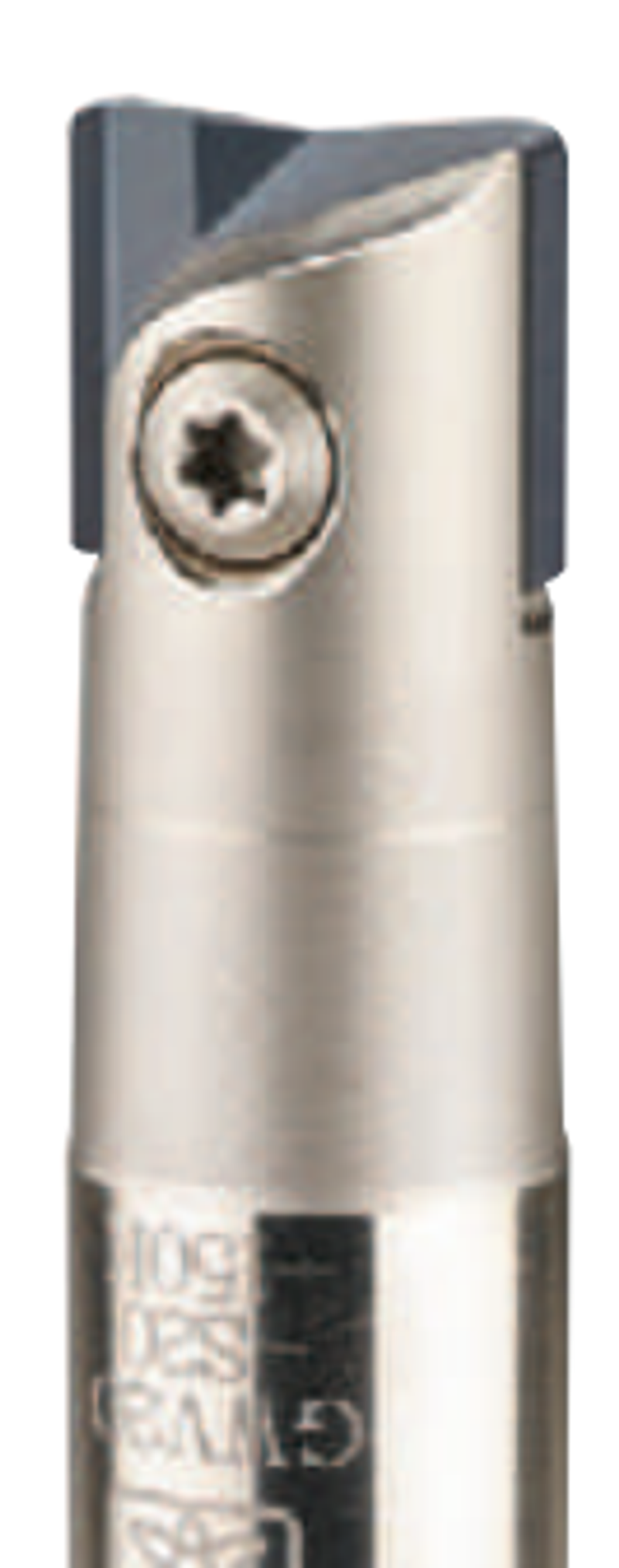

Shangin GWV Radius Precision Cutter (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron
Specifications
Sizes & part numbers
🔍 Click to zoom Dimension key
Shank type
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
12
16
20
25
WPV 12-N-SIst
WPV 16-N-SIst
WPV 20-N-SIst
WPV 25-N-SIst
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT |
|---|---|---|---|---|---|---|
| GWV12-S12-150 | 12 mm | 150 | 12 | 30 | 1 | WPV 12-N-SIst |
| GWV16-S16-150 | 16 mm | 150 | 16 | 35 | 1 | WPV 16-N-SIst |
| GWV16-S16-200 | 16 mm | 200 | 16 | 35 | 1 | WPV 16-N-SIst |
| GWV20-S20-150 | 20 mm | 150 | 20 | 40 | 1 | WPV 20-N-SIst |
| GWV20-S20-200 | 20 mm | 200 | 20 | 40 | 1 | WPV 20-N-SIst |
| GWV20-MD18 | 20 mm | 30 | - | - | 1 | WPV 20-N-SIst |
| GWV25-MD23 | 25 mm | 40 | - | - | 1 | WPV 25-N-SIst |
Compatibility
Compatible inserts
WPV12 series
WPV16 series
WPV20 series
WPV25 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
