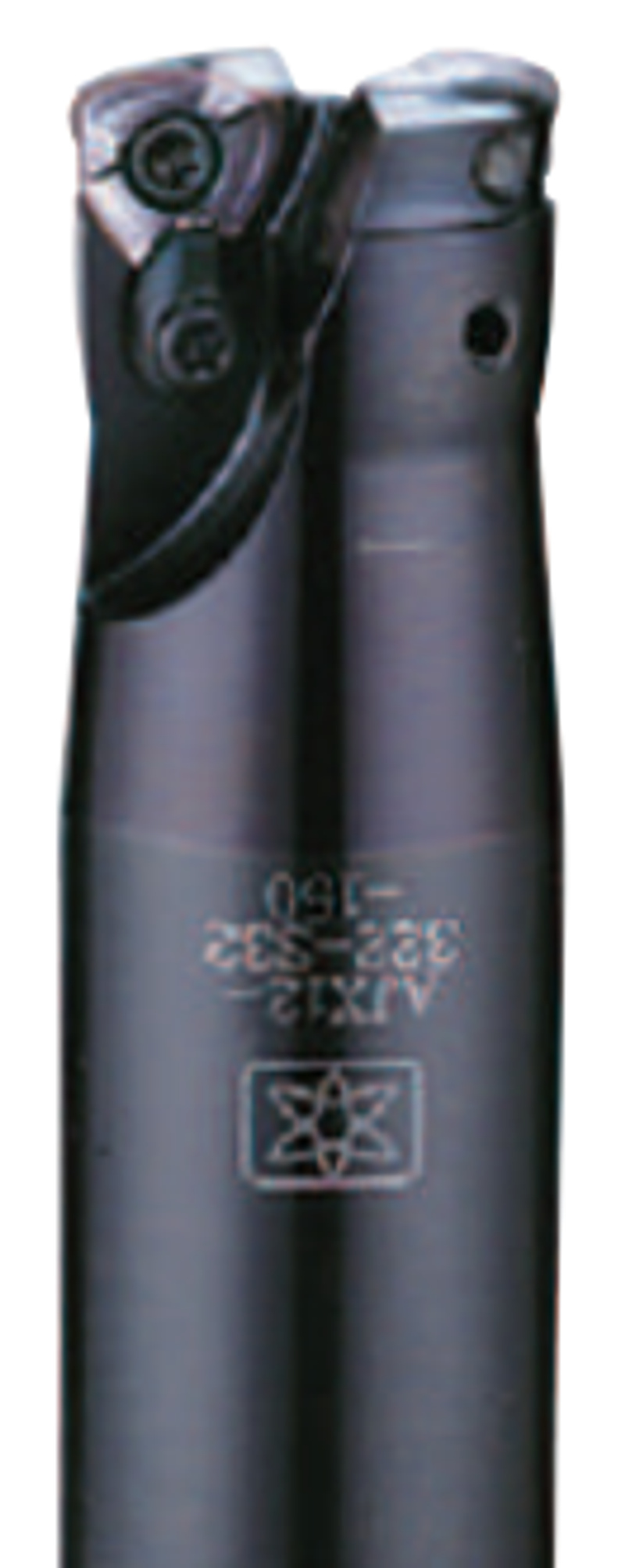

Shangin AJX High-Feed Milling Cutter (Holder)
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironH · Hardened
Specifications
Sizes & part numbers
🔍 Click to zoom

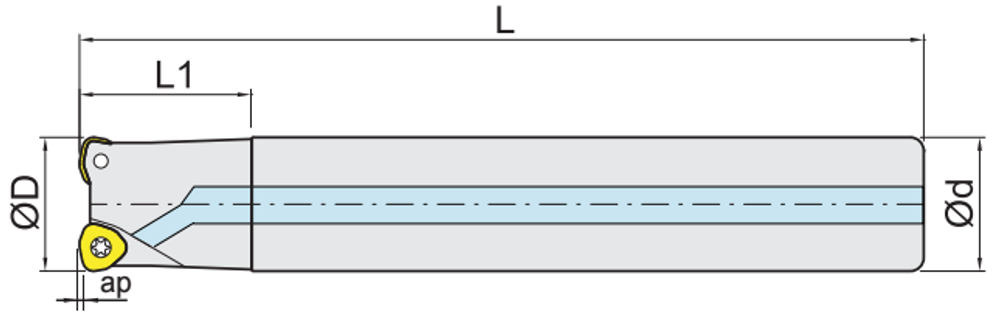

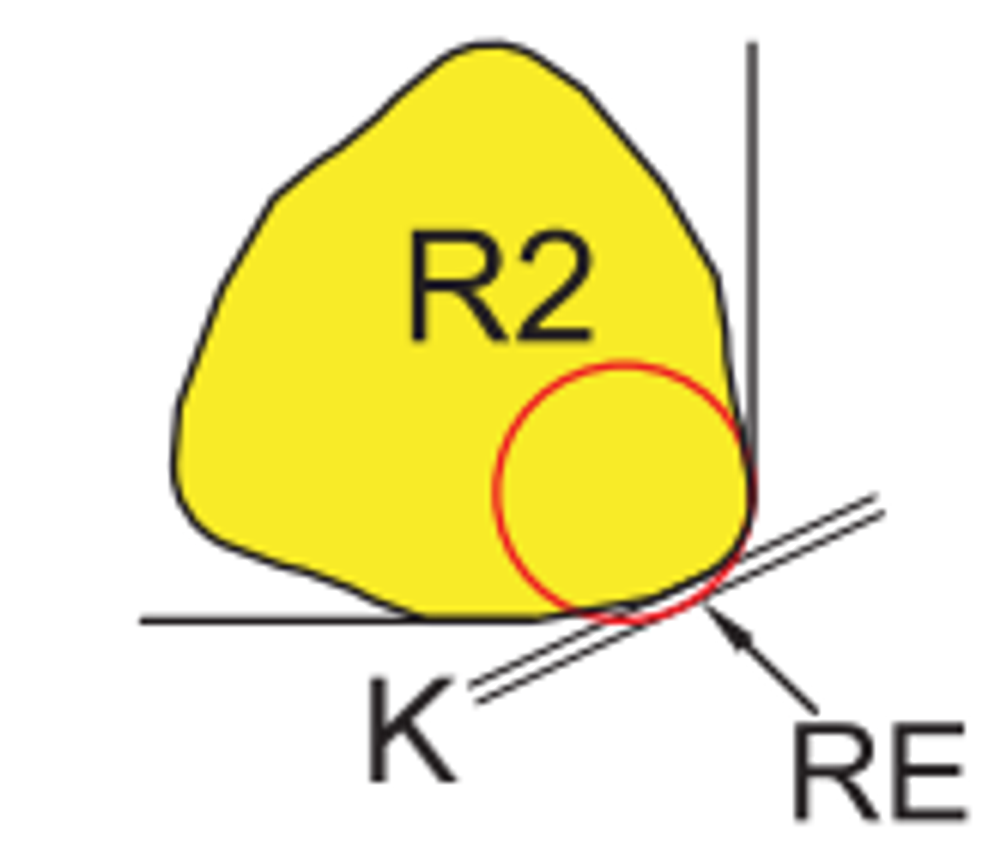

Compatible insert corner geometry (R2 / K / RE) 🔍 Click to zoom Dimension key
Shank
L Overall length
ØD Cutting diameter
Ød Shank diameter
L1 Neck length
ap Depth of cut — Order-code encoded — see the spec sheet PDF for the exact value.
L Overall length
ØD Cutting diameter
Ød Shank diameter — Not currently stored per-row — see the spec sheet PDF or order code for the exact shank size.
M Mount thread — Order-code encoded — not currently stored per-row; see the spec sheet PDF for the exact thread size.
ap Depth of cut — Order-code encoded — see the spec sheet PDF for the exact value.
16
17
20
21
22
25
26
28
32
33
35
40
50
52
63
66
80
100
JD..09T3..
JD..09T3...
JD..1204..
JD..1204...
JD..1405..
JO..06T2...
JO..0803...
Dry
Thru-coolant
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | D | OAL | SHANK | NECK L | TEETH | ACCEPTED INSERT | SPECS |
|---|---|---|---|---|---|---|---|
| AJX06-162-S16-150 | 16 mm | 150 | 16 | 30 | 2 | JO..06T2... | Dry |
| AJX06-162-S16-200 | 16 mm | 200 | 16 | 30 | 2 | JO..06T2... | Dry |
| AJX06-172-S16-150 | 17 mm | 150 | 16 | 20 | 2 | JO..06T2... | Dry |
| AJX06-172-S16-200 | 17 mm | 200 | 16 | 20 | 2 | JO..06T2... | Dry |
| AJX06-203-S20-150 | 20 mm | 150 | 20 | 30 | 3 | JO..06T2... | Dry |
| AJX08-202-S20-150 | 20 mm | 150 | 20 | 30 | 2 | JO..0803... | Dry |
| AJX08-202-S20-200 | 20 mm | 200 | 20 | 30 | 2 | JO..0803... | Dry |
| AJX08-212-S20-150 | 21 mm | 150 | 20 | 20 | 2 | JO..0803... | Dry |
| AJX08-212-S20-200 | 21 mm | 200 | 20 | 20 | 2 | JO..0803... | Dry |
| AJX06-223-S20-150 | 22 mm | 150 | 20 | 25 | 3 | JO..06T2... | Dry |
| AJX08-222-S20-150 | 22 mm | 150 | 20 | 25 | 2 | JO..0803... | Dry |
| AJX08-222-S20-200 | 22 mm | 200 | 20 | 25 | 2 | JO..0803... | Dry |
| AJX08-253-S25-150 | 25 mm | 150 | 25 | 35 | 3 | JO..0803... | Dry |
| AJX08-253-A25-150 | 25 mm | 150 | 25 | 35 | 3 | JO..0803... | Thru-coolant |
| AJX08-253-S25-200 | 25 mm | 200 | 25 | 35 | 3 | JO..0803... | Dry |
| AJX08-263-S25-150 | 26 mm | 150 | 25 | 30 | 3 | JO..0803... | Dry |
| AJX08-263-A25-150 | 26 mm | 150 | 25 | 30 | 3 | JO..0803... | Thru-coolant |
| AJX08-263-S25-200 | 26 mm | 200 | 25 | 30 | 3 | JO..0803... | Dry |
| AJX12-322-S32-150 | 32 mm | 150 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-322-S32-200 | 32 mm | 200 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-322-S32-250 | 32 mm | 250 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-150 | 33 mm | 150 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-200 | 33 mm | 200 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX12-332-S32-250 | 33 mm | 250 | 32 | 45 | 2 | JD..1204... | Dry |
| AJX08-353-S32-150 | 35 mm | 150 | 32 | 30 | 3 | JO..0803... | Dry |
| AJX08-353-S32-200 | 35 mm | 200 | 32 | 30 | 3 | JO..0803... | Dry |
| AJX12-403-S32-150 | 40 mm | 150 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S42-150 | 40 mm | 150 | 42 | 70 | 3 | JD..1204... | Dry |
| AJX12-403-S32-200 | 40 mm | 200 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S42-200 | 40 mm | 200 | 42 | 70 | 3 | JD..1204... | Dry |
| AJX12-403-S32-250 | 40 mm | 250 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX12-403-S32-300 | 40 mm | 300 | 32 | 35 | 3 | JD..1204... | Dry |
| AJX06-162-MD14 | 16 mm | 25 | - | - | 2 | JO..06T2... | Dry |
| AJX06-162-AMD14 | 16 mm | 25 | - | - | 2 | JO..06T2... | Thru-coolant |
| AJX06-172-MD14 | 17 mm | 25 | - | - | 2 | JO..06T2... | Dry |
| AJX06-172-AMD14 | 17 mm | 25 | - | - | 2 | JO..06T2... | Thru-coolant |
| AJX06-203-MD18 | 20 mm | 30 | - | - | 3 | JO..06T2... | Dry |
| AJX06-203-AMD18 | 20 mm | 30 | - | - | 3 | JO..06T2... | Thru-coolant |
| AJX08-202-AMD18 | 20 mm | 30 | - | - | 2 | JO..0803... | Thru-coolant |
| AJX08-212-MD18 | 21 mm | 30 | - | - | 2 | JO..0803... | Dry |
| AJX08-253-MD23 | 25 mm | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-253-AMD23 | 25 mm | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX09-252-MD23 | 25 mm | 35 | - | - | 2 | JD..09T3... | Dry |
| AJX09-252-AMD23 | 25 mm | 35 | - | - | 2 | JD..09T3... | Thru-coolant |
| AJX08-263-MD23 | 26 mm | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-263-AMD23 | 26 mm | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-283-MD23 | 28 mm | 35 | - | - | 3 | JO..0803... | Dry |
| AJX08-283-AMD23 | 28 mm | 35 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-323-MD29 | 32 mm | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-323-AMD29 | 32 mm | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-333-MD29 | 33 mm | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-333-AMD29 | 33 mm | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX08-353-MD29 | 35 mm | 43 | - | - | 3 | JO..0803... | Dry |
| AJX08-353-AMD29 | 35 mm | 43 | - | - | 3 | JO..0803... | Thru-coolant |
| AJX12-352-MD29 | 35 mm | 43 | - | - | 2 | JD..1204... | Dry |
| AJX12-403-MD29 | 40 mm | 43 | - | - | 3 | JD..1204... | Dry |
| AJX12-403-AMD29 | 40 mm | 43 | - | - | 3 | JD..1204... | Thru-coolant |
| AJX12-050A03R-22.0 | 50 mm | 50 | - | - | 3 | JD..1204.. | Dry |
| AJX12-050A04R-22.0 | 50 mm | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-050A04R-A22.0 | 50 mm | 50 | - | - | 4 | JD..1204.. | Thru-coolant |
| AJX09-052A05R-A22.0 | 52 mm | 50 | - | - | 5 | JD..09T3.. | Thru-coolant |
| AJX12-052A04R-A22.0 | 52 mm | 50 | - | - | 4 | JD..1204.. | Thru-coolant |
| AJX12-063A04R-22.0 | 63 mm | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX14-063A04R-22.0 | 63 mm | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-06304CR-25.4 | 63 mm | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-06305CR-25.4 | 63 mm | 50 | - | - | 5 | JD..1204.. | Dry |
| AJX14-06304CR-25.4 | 63 mm | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-06604CR-25.4 | 66 mm | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX14-06604CR-25.4 | 66 mm | 50 | - | - | 4 | JD..1405.. | Dry |
| AJX12-08004CR-25.4 | 80 mm | 50 | - | - | 4 | JD..1204.. | Dry |
| AJX12-08006CR-25.4 | 80 mm | 50 | - | - | 6 | JD..1204.. | Dry |
| AJX14-08004DR-31.75 | 80 mm | 63 | - | - | 4 | JD..1405.. | Dry |
| AJX12-10007R-31.75 | 100 mm | 63 | - | - | 7 | JD..1204.. | Dry |
| AJX12-10007R-A31.75 | 100 mm | 63 | - | - | 7 | JD..1204.. | Thru-coolant |
| AJX14-10005DR-31.75 | 100 mm | 63 | - | - | 5 | JD..1405.. | Dry |
Compatibility
Compatible inserts
JOMT06T2 series
JOMT0803 series
JDMT1204 series
JDMT09T3 series
JDMT1405 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
