Milling

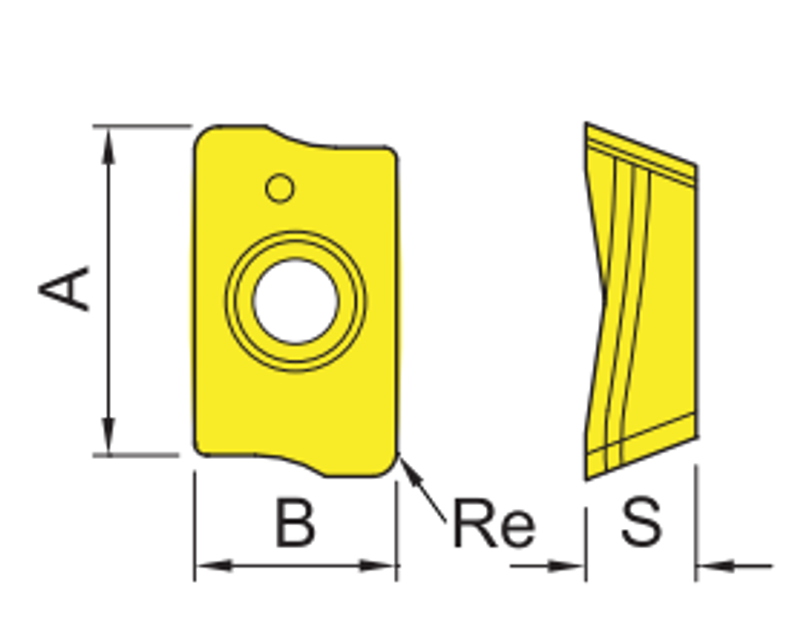

R390 Indexable Milling Insert
Workpiece material (ISO)
P · SteelM · StainlessK · Cast ironN · Non-ferrous
Specifications
Sizes & part numbers
| ORDER NO. | CORNER R | THICKNESS S | IC | GRADE |
|---|---|---|---|---|
| R390-11T308E-PL | 0.8 | 3.59 | 11 | |
| R390-11T308M-PM | 0.8 | 3.59 | 11 | |
| R390-170408M-PL | 0.8 | 4.76 | 17 | |
| R390-170408M-PM | 0.8 | 4.76 | 17 |
IC = inscribed-circle diameter
Compatibility
Compatible holders
R39011T3 series
R3901704 series
Compatibility derived from the standard insert size code — uses standard APMT/APGT naming. See each linked page for the exact grade and chipbreaker codes.
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
