W-Chamfering Cutters
Solid-carbide chamfer cutter for machining steel and stainless steel, for chamfering and V-grooving and double-angle (W) chamfering. OK Premium coated, Ø2.51–10 mm in 0.5 mm diameter increments (14 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes.
Engineered for performance
Solid-Carbide Substrate, OK Premium Coating
OK Premium coating is standard — no uncoated option — across all 14 catalogue sizes.
Double-Angle (W) Chamfering Geometry
The catalogue's own "W-Chamfering" (double-angle) chamfer-cutter profile cuts two chamfer angles in one pass, distinct from the single-angle V-Groove Cutter line.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø2.51–10 mm, 45–100 mm Overall Length
Diameters run Ø2.51–10 mm in 0.5 mm increments, with overall lengths from 45 to 100 mm across 14 sizes.
Sizes & part numbers

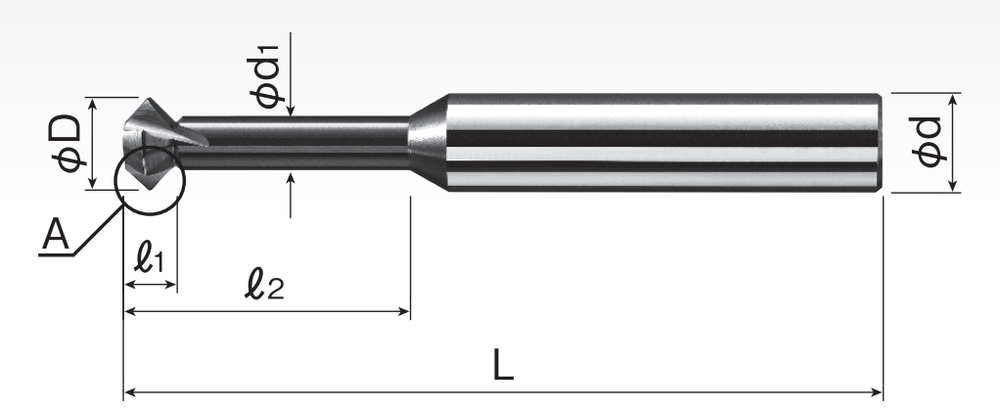

WCS3A 🔍 Click to zoom

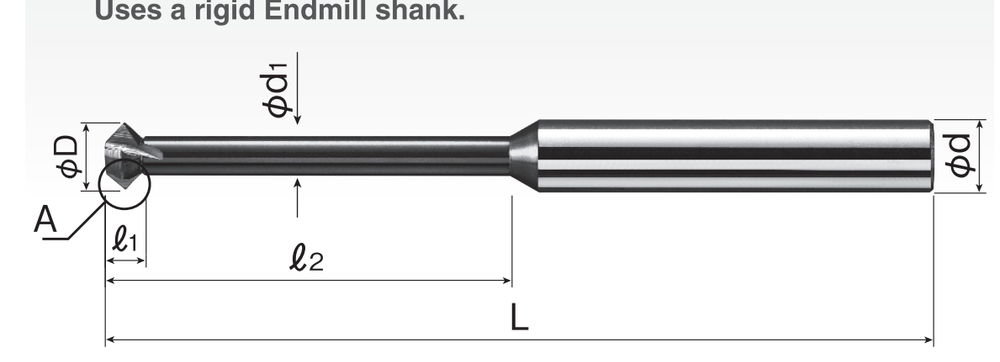

WCS3LA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | SHANK | COATING |
|---|---|---|---|---|
| WCS3A025 | 2.51 mm | 0.05 | 3 | OK Premium |
| WCS3A030 | 3 mm | 1.3 | 4 | OK Premium |
| WCS3A035 | 3.5 mm | 1.4 | 4 | OK Premium |
| WCS3A040 | 4 mm | 1.6 | 4 | OK Premium |
| WCS3A045 | 4.5 mm | 1.8 | 6 | OK Premium |
| WCS3A050 | 5 mm | 2.1 | 6 | OK Premium |
| WCS3LA050 | 5 mm | 2.1 | 5 | OK Premium |
| WCS3A055 | 5.5 mm | 2.3 | 6 | OK Premium |
| WCS3A060 | 6 mm | 2.5 | 6 | OK Premium |
| WCS3LA060 | 6 mm | 2.5 | 6 | OK Premium |
| WCS3A080 | 8 mm | 3.7 | 8 | OK Premium |
| WCS3LA080 | 8 mm | 3.7 | 8 | OK Premium |
| WCS3A100 | 10 mm | 3.7 | 10 | OK Premium |
| WCS3LA100 | 10 mm | 3.7 | 10 | OK Premium |
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
