V-Groove Cutters
Solid-carbide chamfer cutter for machining steel and stainless steel, for chamfering and V-grooving. OK Premium coated, Ø3–20 mm in 2 mm diameter increments (16 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, OK Premium Coating
OK Premium coating is standard — no uncoated option — across all 16 catalogue sizes.
Chamfering & V-Grooving Geometry
The catalogue's own "chamfer cutter" type (V-groove profile) cuts a chamfer or V-groove, not a general end-milling profile.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø3–20 mm, 45–105 mm Overall Length
Diameters run Ø3–20 mm in 2 mm increments, with overall lengths from 45 to 105 mm across 16 sizes.
Sizes & part numbers

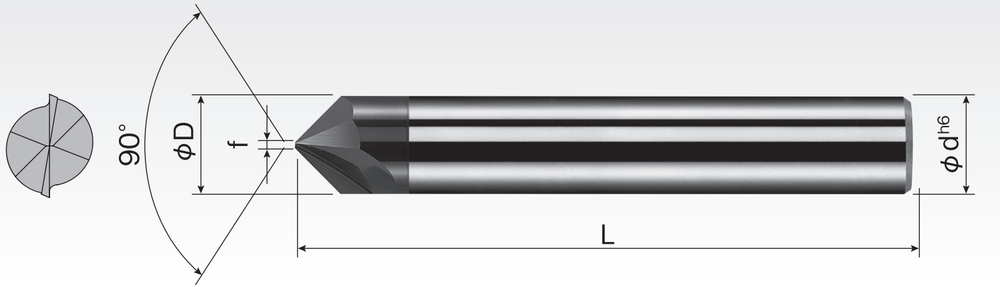

SVCA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | ANGLE | SHANK | COATING |
|---|---|---|---|---|
| SVCA030-060 | 3 mm | 60° | 3 | OK Premium |
| SVCA030-090 | 3 mm | 90° | 3 | OK Premium |
| SVCA040-060 | 4 mm | 60° | 4 | OK Premium |
| SVCA040-090 | 4 mm | 90° | 4 | OK Premium |
| SVCA060-060 | 6 mm | 60° | 6 | OK Premium |
| SVCA060-090 | 6 mm | 90° | 6 | OK Premium |
| SVCA080-060 | 8 mm | 60° | 8 | OK Premium |
| SVCA080-090 | 8 mm | 90° | 8 | OK Premium |
| SVCA100-060 | 10 mm | 60° | 10 | OK Premium |
| SVCA100-090 | 10 mm | 90° | 10 | OK Premium |
| SVCA120-060 | 12 mm | 60° | 12 | OK Premium |
| SVCA120-090 | 12 mm | 90° | 12 | OK Premium |
| SVCA160-060 | 16 mm | 60° | 16 | OK Premium |
| SVCA160-090 | 16 mm | 90° | 16 | OK Premium |
| SVCA200-060 | 20 mm | 60° | 20 | OK Premium |
| SVCA200-090 | 20 mm | 90° | 20 | OK Premium |
