Point Drills for NC Machine
Solid-carbide drill for machining steel, stainless steel, cast iron and non-ferrous metals, for NC spotting and centring. OK Premium coated, Ø3–12 mm in 2 mm diameter increments (24 catalogue items). Ships in a single coating option. Part of Okazaki's drilling tool range.
Engineered for performance
Solid-Carbide Substrate, OK Premium Coating
OK Premium coating is standard — no uncoated option — across all 24 catalogue sizes.
NC Spotting & Centring Geometry
The catalogue's own "NC" (point/spotting) drill designation is for locating and centring a hole on CNC equipment before a full-length drill follows, not through-hole production drilling.
Steel, Stainless, Cast-Iron & Non-Ferrous Coverage
Rated for ISO P (steel), M (stainless steel), K (cast iron) and N (non-ferrous metal) material groups.
Ø3–12 mm, 50–110 mm Overall Length
Diameters run Ø3–12 mm in 2 mm increments, with overall lengths from 50 to 110 mm across 24 sizes.
Sizes & part numbers

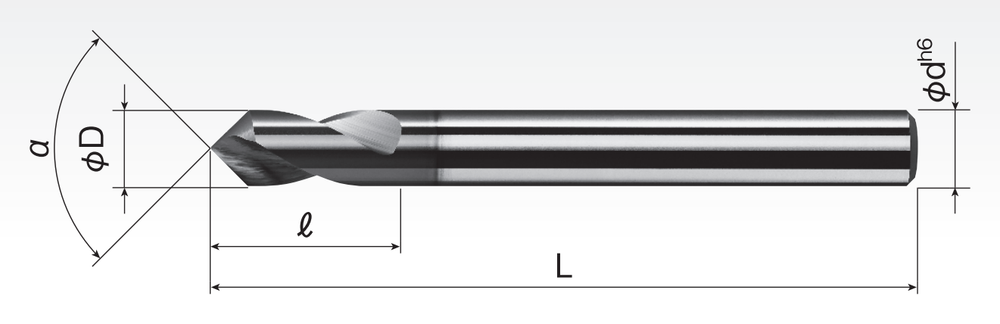

SNPDA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | OAL | SHANK |
|---|---|---|---|---|
| SNPDA030-060 | 3 mm | 8 | 50 | 3 |
| SNPDA030-120 | 3 mm | 8 | 50 | 3 |
| SNPDA030-090 | 3 mm | 8 | 50 | 3 |
| SNPDA030-135 | 3 mm | 8 | 50 | 3 |
| SNPDA040-060 | 4 mm | 10 | 60 | 4 |
| SNPDA040-120 | 4 mm | 10 | 60 | 4 |
| SNPDA040-090 | 4 mm | 10 | 60 | 4 |
| SNPDA040-135 | 4 mm | 10 | 60 | 4 |
| SNPDA060-060 | 6 mm | 15 | 70 | 6 |
| SNPDA060-120 | 6 mm | 15 | 70 | 6 |
| SNPDA060-090 | 6 mm | 15 | 70 | 6 |
| SNPDA060-135 | 6 mm | 15 | 70 | 6 |
| SNPDA080-060 | 8 mm | 20 | 90 | 8 |
| SNPDA080-120 | 8 mm | 20 | 90 | 8 |
| SNPDA080-090 | 8 mm | 20 | 90 | 8 |
| SNPDA080-135 | 8 mm | 20 | 90 | 8 |
| SNPDA100-060 | 10 mm | 25 | 100 | 10 |
| SNPDA100-120 | 10 mm | 25 | 100 | 10 |
| SNPDA100-090 | 10 mm | 25 | 100 | 10 |
| SNPDA100-135 | 10 mm | 25 | 100 | 10 |
| SNPDA120-060 | 12 mm | 30 | 110 | 12 |
| SNPDA120-120 | 12 mm | 30 | 110 | 12 |
| SNPDA120-090 | 12 mm | 30 | 110 | 12 |
| SNPDA120-135 | 12 mm | 30 | 110 | 12 |
