Carbide Zakkuri End Mills (3F)
3-flute solid-carbide square end mill for machining steel and stainless steel, for drill-and-mill (zakkuri) plunge work. OK Premium coated, Ø6.5–18 mm (5 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, OK Premium Coating
OK Premium coating is standard — no uncoated option — across all 5 catalogue sizes.
3-Flute Zakkuri (Drill-and-Mill) Geometry
A fixed 3-flute profile under the catalogue's own "zakkuri" (drill-and-mill) designation — the steel/stainless (P/M-rated) counterpart to the Aluminum Zakkuri End Mills line drafted in batch 2, which is N-rated and DLC-optioned instead.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø6.5–18 mm, 60–100 mm Overall Length
Diameters run Ø6.5–18 mm, with overall lengths from 60 to 100 mm across 5 sizes.

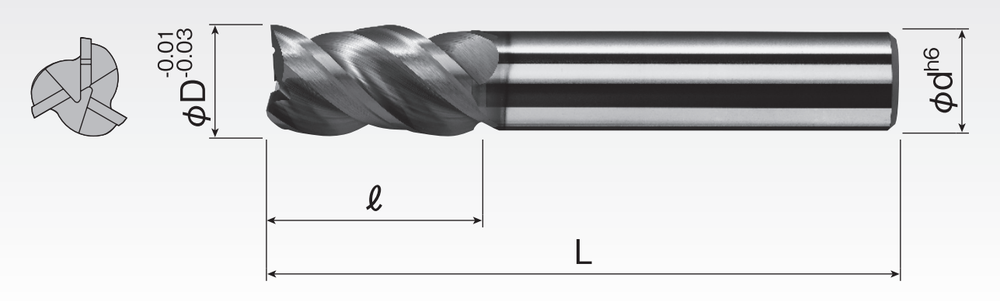

Sizes & part numbers
SEE3ZTA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|
| SEE3ZTA065 | 6.5 mm | 15 | 60 | 6 | OK Premium |
| SEE3ZTA095 | 9.5 mm | 19 | 70 | 8 | OK Premium |
| SEE3ZTA110 | 11 mm | 22 | 75 | 10 | OK Premium |
| SEE3ZTA140 | 14 mm | 26 | 90 | 12 | OK Premium |
| SEE3ZTA180 | 18 mm | 32 | 100 | 16 | OK Premium |
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
