Carbide T-slot Cutters
4/6-flute solid-carbide t-slot cutter for machining steel and stainless steel, for cutting T-slots. Uncoated, Ø2–8 mm in 2 mm diameter increments (8 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, Uncoated
Uncoated — no coating option offered in this line — across all 8 catalogue sizes.
4/6-Flute T-Slot Geometry
A 2-way flute-count choice (4F/6F) under the catalogue's own "T-slot cutter" designation, for cutting a T-shaped slot rather than a general end-milling profile.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø2–8 mm, 45–60 mm Overall Length
Diameters run Ø2–8 mm in 2 mm increments, with overall lengths from 45 to 60 mm across 8 sizes.
Sizes & part numbers

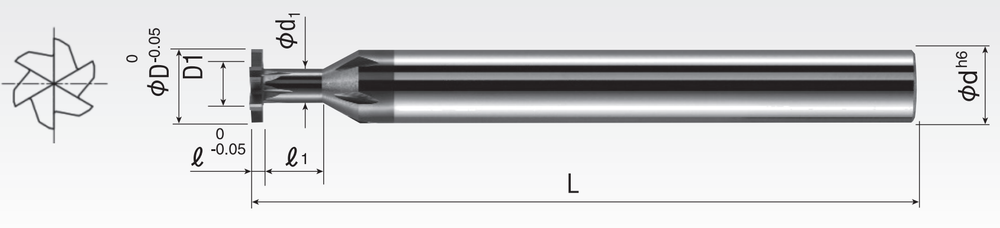

STSCA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | D | W | SHANK | TEETH | COATING |
|---|---|---|---|---|---|
| STSCA02X005 | 2 mm | 0.5 | 4 | 4 | Uncoated |
| STSCA02X010 | 2 mm | 1 | 4 | 4 | Uncoated |
| STSCA04X010 | 4 mm | 1 | 4 | 4 | Uncoated |
| STSCA04X020 | 4 mm | 2 | 4 | 4 | Uncoated |
| STSCA06X010 | 6 mm | 1 | 6 | 6 | Uncoated |
| STSCA06X020 | 6 mm | 2 | 6 | 6 | Uncoated |
| STSCA08X020 | 8 mm | 2 | 8 | 6 | Uncoated |
| STSCA08X030 | 8 mm | 3 | 8 | 6 | Uncoated |
W = groove width
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
