Carbide Side-Cutting End Mills (5F)
5-flute solid-carbide square end mill for machining steel and stainless steel, for side milling. OK Premium coated, Ø6–10 mm in 2 mm diameter increments (3 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, OK Premium Coating
OK Premium coating is standard — no uncoated option — across all 3 catalogue sizes.
5-Flute Side-Milling Geometry
A fixed 5-flute square-end geometry under the catalogue's own side-milling designation.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø6–10 mm, 80–100 mm Overall Length
Diameters run Ø6–10 mm in 2 mm increments, with overall lengths from 80 to 100 mm across 3 sizes.
Sizes & part numbers

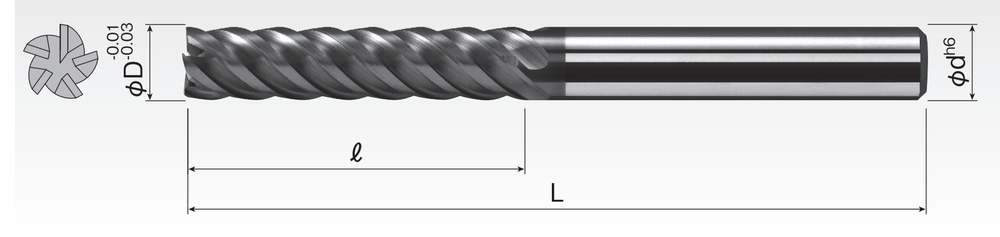

SEE5GLA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|
| SEE5GLA060 | 6 mm | 30 | 80 | 6 | OK Premium |
| SEE5GLA080 | 8 mm | 36 | 90 | 8 | OK Premium |
| SEE5GLA100 | 10 mm | 45 | 100 | 10 | OK Premium |
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
