Carbide Key-seat Cutters
4/6/8-flute solid-carbide t-slot cutter for machining steel and stainless steel, for cutting keyseats. Uncoated, Ø2–8 mm in 2 mm diameter increments (8 catalogue items). Ships in a single coating option. Rated for ISO P/M material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, Uncoated
Uncoated — no coating option offered in this line — across all 8 catalogue sizes.
4/6/8-Flute Keyseat-Cutting Geometry (T-Slot Cutter Type)
A 3-way flute-count choice (4F/6F/8F) for cutting keyseats, using the same "T-slot cutter" type vocabulary (per the schema's TYPE_OVERRIDE correction) as the T-Slot Cutters line drafted in batch 2 — a wider 3-way flute-count choice than that line's 2-way (4F/6F) split.
Steel & Stainless Coverage
Rated for ISO P (steel) and M (stainless steel) material groups.
Ø2–8 mm, 45–60 mm Overall Length
Diameters run Ø2–8 mm in 2 mm increments, with overall lengths from 45 to 60 mm across 8 sizes.
Sizes & part numbers

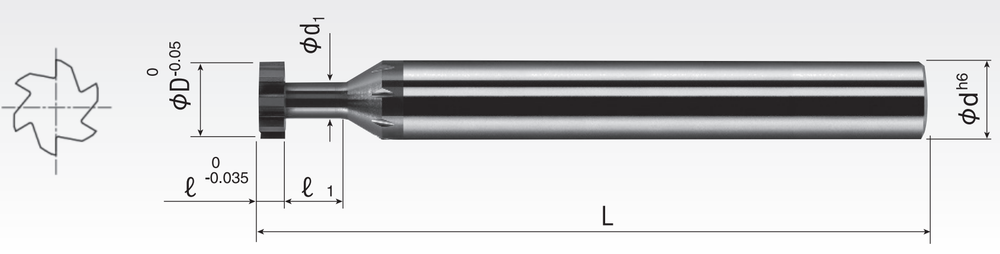

SKSCA 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | D | W | SHANK | TEETH | COATING |
|---|---|---|---|---|---|
| SKSCA02X005 | 2 mm | 0.5 | 4 | 4 | Uncoated |
| SKSCA02X010 | 2 mm | 1 | 4 | 4 | Uncoated |
| SKSCA04X010 | 4 mm | 1 | 4 | 6 | Uncoated |
| SKSCA04X020 | 4 mm | 2 | 4 | 6 | Uncoated |
| SKSCA06X010 | 6 mm | 1 | 6 | 8 | Uncoated |
| SKSCA06X020 | 6 mm | 2 | 6 | 8 | Uncoated |
| SKSCA08X010 | 8 mm | 1 | 8 | 8 | Uncoated |
| SKSCA08X020 | 8 mm | 2 | 8 | 8 | Uncoated |
W = groove width
