Carbide Helical Reamers
Workpiece material (ISO)
P · SteelM · StainlessK · Cast iron
4/6/8-flute solid-carbide reamer for machining steel, stainless steel and cast iron, for finish-reaming holes to size. Uncoated, Ø2.95–30 mm in fine sub-millimetre increments (438 catalogue items). Ships in a single coating option. Rated for ISO P/M/K material classes.
Features & uses
Engineered for performance
1
Solid-Carbide Substrate, Uncoated
Uncoated — no coating option offered in this line — across all 438 catalogue sizes.
2
4/6/8-Flute Reaming Geometry, Short/Long/Top Solid Sub-Series
A 3-way flute-count choice (4F/6F/8F) plus a Short Type / Long Type / Top Solid Type sub-series split (Phase 50's standalone model-code registry) under the catalogue's own Helical Reamer designation.
3
Steel, Stainless & Cast-Iron Coverage
Rated for ISO P (steel), M (stainless steel) and K (cast iron) material groups.
4
Ø2.95–30 mm, 60–240 mm Overall Length
Diameters run Ø2.95–30 mm in fine sub-millimetre increments, with overall lengths from 60 to 240 mm across 438 sizes.
Specifications
Sizes & part numbers

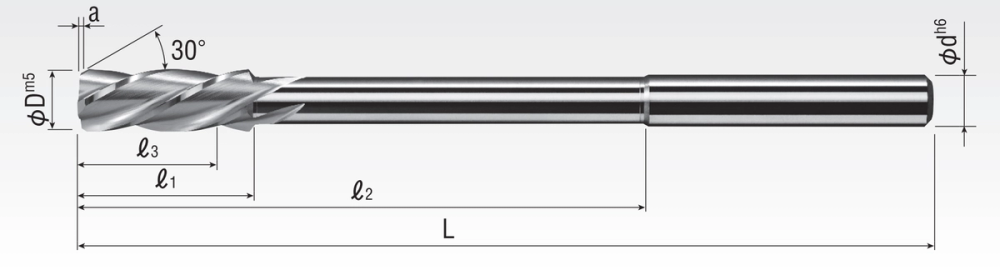

BCHR 🔍 Click to zoom

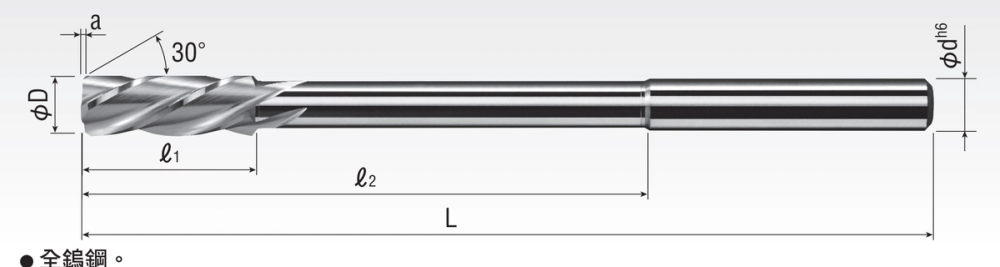

CHR 🔍 Click to zoom

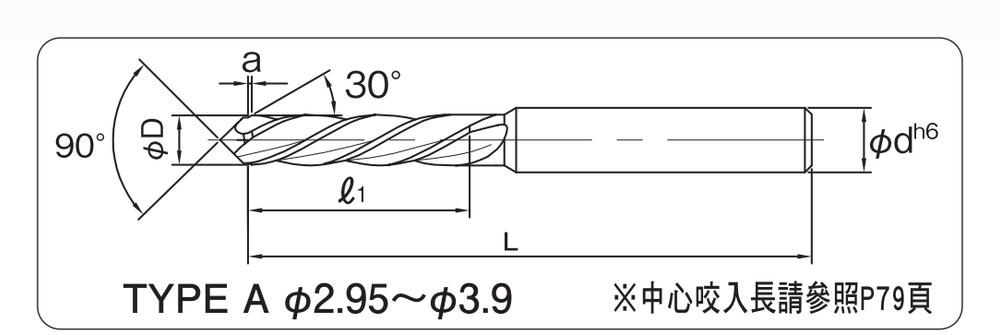

CHRS-1 🔍 Click to zoom

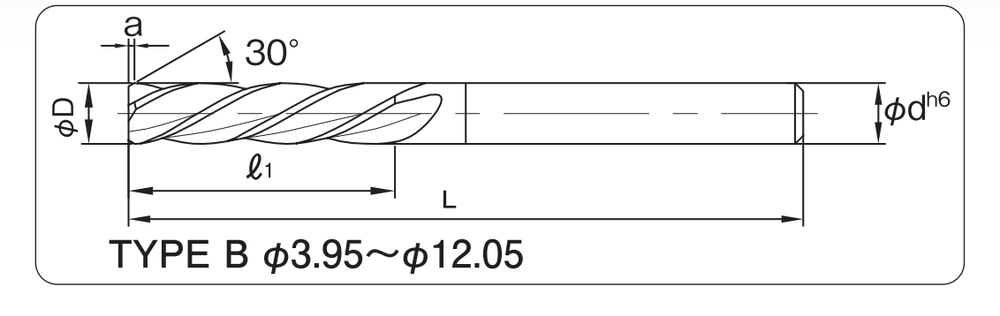

CHRS-2 🔍 Click to zoom SUB-SERIES
2.95
2.96
2.97
2.98
2.99
3
3.01
3.02
3.03
3.04
3.05
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.95
3.96
3.97
3.98
3.99
4
4.01
4.02
4.03
4.04
4.05
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.95
4.96
4.97
4.98
4.99
5
5.01
5.02
5.03
5.04
5.05
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.95
5.96
5.97
5.98
5.99
6
6.01
6.02
6.03
6.04
6.05
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
6.95
6.96
6.97
6.98
6.99
7
7.01
7.02
7.03
7.04
7.05
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.95
7.96
7.97
7.98
7.99
8
8.01
8.02
8.03
8.04
8.05
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
8.95
8.96
8.97
8.98
8.99
9
9.01
9.02
9.03
9.04
9.05
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.95
9.96
9.97
9.98
9.99
10
10.01
10.02
10.03
10.04
10.05
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
10.95
10.96
10.97
10.98
10.99
11
11.01
11.02
11.03
11.04
11.05
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
11.95
11.96
11.97
11.98
11.99
12
12.01
12.02
12.03
12.04
12.05
12.5
13
13.5
14
14.5
15
15.5
16
16.5
17
17.5
18
18.5
19
19.5
20
20.5
21
21.5
22
22.5
23
23.5
24
24.5
25
25.5
26
26.5
27
27.5
28
28.5
29
29.5
30
No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | Ø | FLUTES | FLUTE L | OAL | SHANK |
|---|---|---|---|---|---|
| CHRSM0295 | 2.95 mm | 4 | 22 | 60 | 4 |
| CHRSM0296 | 2.96 mm | 4 | 22 | 60 | 4 |
| CHRSM0297 | 2.97 mm | 4 | 22 | 60 | 4 |
| CHRSM0298 | 2.98 mm | 4 | 22 | 60 | 4 |
| CHRSM0299 | 2.99 mm | 4 | 22 | 60 | 4 |
| CHRS-030 | 3 mm | 4 | 22 | 60 | 4 |
| CHRSM0300 | 3 mm | 4 | 22 | 60 | 4 |
| CHRSM0301 | 3.01 mm | 4 | 22 | 60 | 4 |
| CHRSM0302 | 3.02 mm | 4 | 22 | 60 | 4 |
| CHRSM0303 | 3.03 mm | 4 | 22 | 60 | 4 |
| CHRSM0304 | 3.04 mm | 4 | 22 | 60 | 4 |
| CHRSM0305 | 3.05 mm | 4 | 22 | 60 | 4 |
| CHRS-031 | 3.1 mm | 4 | 22 | 60 | 4 |
| CHRS-032 | 3.2 mm | 4 | 22 | 60 | 4 |
| CHRS-033 | 3.3 mm | 4 | 22 | 60 | 4 |
| CHRS-034 | 3.4 mm | 4 | 22 | 60 | 4 |
| CHRS-035 | 3.5 mm | 4 | 22 | 60 | 4 |
| CHRS-036 | 3.6 mm | 4 | 22 | 60 | 4 |
| CHRS-037 | 3.7 mm | 4 | 22 | 60 | 4 |
| CHRS-038 | 3.8 mm | 4 | 22 | 60 | 4 |
| CHRS-039 | 3.9 mm | 4 | 22 | 60 | 4 |
| CHRSM0395 | 3.95 mm | 4 | 22 | 60 | 4 |
| CHRSM0396 | 3.96 mm | 4 | 22 | 60 | 4 |
| CHRSM0397 | 3.97 mm | 4 | 22 | 60 | 4 |
| CHRSM0398 | 3.98 mm | 4 | 22 | 60 | 4 |
| CHRSM0399 | 3.99 mm | 4 | 22 | 60 | 4 |
| CHRS-040 | 4 mm | 4 | 22 | 60 | 4 |
| CHRSM0400 | 4 mm | 4 | 22 | 60 | 4 |
| CHRSM0401 | 4.01 mm | 4 | 22 | 60 | 4 |
| CHRSM0402 | 4.02 mm | 4 | 22 | 60 | 4 |
| CHRSM0403 | 4.03 mm | 4 | 22 | 60 | 4 |
| CHRSM0404 | 4.04 mm | 4 | 22 | 60 | 4 |
| CHRSM0405 | 4.05 mm | 4 | 22 | 60 | 4 |
| CHRS-041 | 4.1 mm | 4 | 25 | 70 | 4.5 |
| CHRS-042 | 4.2 mm | 4 | 25 | 70 | 4.5 |
| CHRS-043 | 4.3 mm | 4 | 25 | 70 | 4.5 |
| CHRS-044 | 4.4 mm | 4 | 25 | 70 | 4.5 |
| CHRS-045 | 4.5 mm | 4 | 25 | 70 | 4.5 |
| CHRS-046 | 4.6 mm | 4 | 25 | 70 | 5 |
| CHRS-047 | 4.7 mm | 4 | 25 | 70 | 5 |
| CHRS-048 | 4.8 mm | 4 | 25 | 70 | 5 |
| CHRS-049 | 4.9 mm | 4 | 25 | 70 | 5 |
| CHRSM0495 | 4.95 mm | 4 | 25 | 70 | 5 |
| CHRSM0496 | 4.96 mm | 4 | 25 | 70 | 5 |
| CHRSM0497 | 4.97 mm | 4 | 25 | 70 | 5 |
| CHRSM0498 | 4.98 mm | 4 | 25 | 70 | 5 |
| CHRSM0499 | 4.99 mm | 4 | 25 | 70 | 5 |
| CHRS-050 | 5 mm | 4 | 25 | 70 | 5 |
| CHRSM0500 | 5 mm | 4 | 25 | 70 | 5 |
| CHRSM0501 | 5.01 mm | 4 | 25 | 70 | 5 |
| CHRSM0502 | 5.02 mm | 4 | 25 | 70 | 5 |
| CHRSM0503 | 5.03 mm | 4 | 25 | 70 | 5 |
| CHRSM0504 | 5.04 mm | 4 | 25 | 70 | 5 |
| CHRSM0505 | 5.05 mm | 4 | 25 | 70 | 5 |
| CHRS-051 | 5.1 mm | 4 | 30 | 80 | 5.5 |
| CHRS-052 | 5.2 mm | 4 | 30 | 80 | 5.5 |
| CHRS-053 | 5.3 mm | 4 | 30 | 80 | 5.5 |
| CHRS-054 | 5.4 mm | 4 | 30 | 80 | 5.5 |
| CHRS-055 | 5.5 mm | 4 | 30 | 80 | 5.5 |
| CHRS-056 | 5.6 mm | 4 | 30 | 80 | 6 |
| CHRS-057 | 5.7 mm | 4 | 30 | 80 | 6 |
| CHRS-058 | 5.8 mm | 4 | 30 | 80 | 6 |
| CHRS-059 | 5.9 mm | 4 | 30 | 80 | 6 |
| CHRSM0595 | 5.95 mm | 4 | 30 | 80 | 6 |
| CHRSM0596 | 5.96 mm | 4 | 30 | 80 | 6 |
| CHRSM0597 | 5.97 mm | 4 | 30 | 80 | 6 |
| CHRSM0598 | 5.98 mm | 4 | 30 | 80 | 6 |
| CHRSM0599 | 5.99 mm | 4 | 30 | 80 | 6 |
| CHRS-060 | 6 mm | 4 | 30 | 80 | 6 |
| CHRSM0600 | 6 mm | 4 | 30 | 80 | 6 |
| CHRSM0601 | 6.01 mm | 4 | 30 | 80 | 6 |
| CHRSM0602 | 6.02 mm | 4 | 30 | 80 | 6 |
| CHRSM0603 | 6.03 mm | 4 | 30 | 80 | 6 |
| CHRSM0604 | 6.04 mm | 4 | 30 | 80 | 6 |
| CHRSM0605 | 6.05 mm | 4 | 30 | 80 | 6 |
| CHRS-061 | 6.1 mm | 4 | 30 | 80 | 7 |
| CHRS-062 | 6.2 mm | 4 | 30 | 80 | 7 |
| CHRS-063 | 6.3 mm | 4 | 30 | 80 | 7 |
| CHRS-064 | 6.4 mm | 4 | 30 | 80 | 7 |
| CHRS-065 | 6.5 mm | 4 | 30 | 80 | 7 |
| CHRS-066 | 6.6 mm | 4 | 30 | 80 | 7 |
| CHRS-067 | 6.7 mm | 4 | 30 | 80 | 7 |
| CHRS-068 | 6.8 mm | 4 | 30 | 80 | 7 |
| CHRS-069 | 6.9 mm | 4 | 30 | 80 | 7 |
| CHRSM0695 | 6.95 mm | 4 | 30 | 80 | 7 |
| CHRSM0696 | 6.96 mm | 4 | 30 | 80 | 7 |
| CHRSM0697 | 6.97 mm | 4 | 30 | 80 | 7 |
| CHRSM0698 | 6.98 mm | 4 | 30 | 80 | 7 |
| CHRSM0699 | 6.99 mm | 4 | 30 | 80 | 7 |
| CHRS-070 | 7 mm | 4 | 30 | 80 | 7 |
| CHRSM0700 | 7 mm | 4 | 30 | 80 | 7 |
| CHRSM0701 | 7.01 mm | 4 | 30 | 80 | 7 |
| CHRSM0702 | 7.02 mm | 4 | 30 | 80 | 7 |
| CHRSM0703 | 7.03 mm | 4 | 30 | 80 | 7 |
| CHRSM0704 | 7.04 mm | 4 | 30 | 80 | 7 |
| CHRSM0705 | 7.05 mm | 4 | 30 | 80 | 7 |
| CHRS-071 | 7.1 mm | 4 | 30 | 80 | 8 |
| CHRS-072 | 7.2 mm | 4 | 30 | 80 | 8 |
| CHRS-073 | 7.3 mm | 4 | 30 | 80 | 8 |
| CHRS-074 | 7.4 mm | 4 | 30 | 80 | 8 |
| CHRS-075 | 7.5 mm | 4 | 30 | 80 | 8 |
| CHRS-076 | 7.6 mm | 4 | 30 | 80 | 8 |
| CHRS-077 | 7.7 mm | 4 | 30 | 80 | 8 |
| CHRS-078 | 7.8 mm | 4 | 30 | 80 | 8 |
| CHRS-079 | 7.9 mm | 4 | 30 | 80 | 8 |
| CHRSM0795 | 7.95 mm | 4 | 30 | 80 | 8 |
| CHRSM0796 | 7.96 mm | 4 | 30 | 80 | 8 |
| CHRSM0797 | 7.97 mm | 4 | 30 | 80 | 8 |
| CHRSM0798 | 7.98 mm | 4 | 30 | 80 | 8 |
| CHRSM0799 | 7.99 mm | 4 | 30 | 80 | 8 |
| CHRS-080 | 8 mm | 4 | 30 | 80 | 8 |
| CHRSM0800 | 8 mm | 4 | 30 | 80 | 8 |
| CHRSM0801 | 8.01 mm | 4 | 30 | 80 | 8 |
| CHRSM0802 | 8.02 mm | 4 | 30 | 80 | 8 |
| CHRSM0803 | 8.03 mm | 4 | 30 | 80 | 8 |
| CHRSM0804 | 8.04 mm | 4 | 30 | 80 | 8 |
| CHRSM0805 | 8.05 mm | 4 | 30 | 80 | 8 |
| CHRS-081 | 8.1 mm | 4 | 35 | 90 | 9 |
| CHRS-082 | 8.2 mm | 4 | 35 | 90 | 9 |
| CHRS-083 | 8.3 mm | 4 | 35 | 90 | 9 |
| CHRS-084 | 8.4 mm | 4 | 35 | 90 | 9 |
| CHRS-085 | 8.5 mm | 4 | 35 | 90 | 9 |
| CHRS-086 | 8.6 mm | 4 | 35 | 90 | 9 |
| CHRS-087 | 8.7 mm | 4 | 35 | 90 | 9 |
| CHRS-088 | 8.8 mm | 4 | 35 | 90 | 9 |
| CHRS-089 | 8.9 mm | 4 | 35 | 90 | 9 |
| CHRSM0895 | 8.95 mm | 4 | 35 | 90 | 9 |
| CHRSM0896 | 8.96 mm | 4 | 35 | 90 | 9 |
| CHRSM0897 | 8.97 mm | 4 | 35 | 90 | 9 |
| CHRSM0898 | 8.98 mm | 4 | 35 | 90 | 9 |
| CHRSM0899 | 8.99 mm | 4 | 35 | 90 | 9 |
| CHRS-090 | 9 mm | 4 | 35 | 90 | 9 |
| CHRSM0900 | 9 mm | 4 | 35 | 90 | 9 |
| CHRSM0901 | 9.01 mm | 4 | 35 | 90 | 9 |
| CHRSM0902 | 9.02 mm | 4 | 35 | 90 | 9 |
| CHRSM0903 | 9.03 mm | 4 | 35 | 90 | 9 |
| CHRSM0904 | 9.04 mm | 4 | 35 | 90 | 9 |
| CHRSM0905 | 9.05 mm | 4 | 35 | 90 | 9 |
| CHRS-091 | 9.1 mm | 4 | 35 | 90 | 10 |
| CHRS-092 | 9.2 mm | 4 | 35 | 90 | 10 |
| CHRS-093 | 9.3 mm | 4 | 35 | 90 | 10 |
| CHRS-094 | 9.4 mm | 4 | 35 | 90 | 10 |
| CHRS-095 | 9.5 mm | 4 | 35 | 90 | 10 |
| CHRS-096 | 9.6 mm | 4 | 35 | 90 | 10 |
| CHRS-097 | 9.7 mm | 4 | 35 | 90 | 10 |
| CHRS-098 | 9.8 mm | 4 | 35 | 90 | 10 |
| CHRS-099 | 9.9 mm | 4 | 35 | 90 | 10 |
| CHRSM0995 | 9.95 mm | 4 | 35 | 90 | 10 |
| CHRSM0996 | 9.96 mm | 4 | 35 | 90 | 10 |
| CHRSM0997 | 9.97 mm | 4 | 35 | 90 | 10 |
| CHRSM0998 | 9.98 mm | 4 | 35 | 90 | 10 |
| CHRSM0999 | 9.99 mm | 4 | 35 | 90 | 10 |
| CHRS-100 | 10 mm | 4 | 35 | 90 | 10 |
| CHRSM1000 | 10 mm | 4 | 35 | 90 | 10 |
| CHRSM1001 | 10.01 mm | 4 | 35 | 90 | 10 |
| CHRSM1002 | 10.02 mm | 4 | 35 | 90 | 10 |
| CHRSM1003 | 10.03 mm | 4 | 35 | 90 | 10 |
| CHRSM1004 | 10.04 mm | 4 | 35 | 90 | 10 |
| CHRSM1005 | 10.05 mm | 4 | 35 | 90 | 10 |
| CHRS-101 | 10.1 mm | 4 | 35 | 90 | 11 |
| CHRS-102 | 10.2 mm | 4 | 35 | 90 | 11 |
| CHRS-103 | 10.3 mm | 4 | 35 | 90 | 11 |
| CHRS-104 | 10.4 mm | 4 | 35 | 90 | 11 |
| CHRS-105 | 10.5 mm | 4 | 35 | 90 | 11 |
| CHRS-106 | 10.6 mm | 4 | 35 | 90 | 11 |
| CHRS-107 | 10.7 mm | 4 | 35 | 90 | 11 |
| CHRS-108 | 10.8 mm | 4 | 35 | 90 | 11 |
| CHRS-109 | 10.9 mm | 4 | 35 | 90 | 11 |
| CHRSM1095 | 10.95 mm | 4 | 35 | 90 | 11 |
| CHRSM1096 | 10.96 mm | 4 | 35 | 90 | 11 |
| CHRSM1097 | 10.97 mm | 4 | 35 | 90 | 11 |
| CHRSM1098 | 10.98 mm | 4 | 35 | 90 | 11 |
| CHRSM1099 | 10.99 mm | 4 | 35 | 90 | 11 |
| CHRS-110 | 11 mm | 4 | 35 | 90 | 11 |
| CHRSM1100 | 11 mm | 4 | 35 | 90 | 11 |
| CHRSM1101 | 11.01 mm | 4 | 35 | 90 | 11 |
| CHRSM1102 | 11.02 mm | 4 | 35 | 90 | 11 |
| CHRSM1103 | 11.03 mm | 4 | 35 | 90 | 11 |
| CHRSM1104 | 11.04 mm | 4 | 35 | 90 | 11 |
| CHRSM1105 | 11.05 mm | 4 | 35 | 90 | 11 |
| CHRS-111 | 11.1 mm | 4 | 35 | 90 | 12 |
| CHRS-112 | 11.2 mm | 4 | 35 | 90 | 12 |
| CHRS-113 | 11.3 mm | 4 | 35 | 90 | 12 |
| CHRS-114 | 11.4 mm | 4 | 35 | 90 | 12 |
| CHRS-115 | 11.5 mm | 4 | 35 | 90 | 12 |
| CHRS-116 | 11.6 mm | 4 | 35 | 90 | 12 |
| CHRS-117 | 11.7 mm | 4 | 35 | 90 | 12 |
| CHRS-118 | 11.8 mm | 4 | 35 | 90 | 12 |
| CHRS-119 | 11.9 mm | 4 | 35 | 90 | 12 |
| CHRSM1195 | 11.95 mm | 4 | 35 | 90 | 12 |
| CHRSM1196 | 11.96 mm | 4 | 35 | 90 | 12 |
| CHRSM1197 | 11.97 mm | 4 | 35 | 90 | 12 |
| CHRSM1198 | 11.98 mm | 4 | 35 | 90 | 12 |
| CHRSM1199 | 11.99 mm | 4 | 35 | 90 | 12 |
| CHRS-120 | 12 mm | 4 | 35 | 90 | 12 |
| CHRSM1200 | 12 mm | 4 | 35 | 90 | 12 |
| CHRSM1201 | 12.01 mm | 4 | 35 | 90 | 12 |
| CHRSM1202 | 12.02 mm | 4 | 35 | 90 | 12 |
| CHRSM1203 | 12.03 mm | 4 | 35 | 90 | 12 |
| CHRSM1204 | 12.04 mm | 4 | 35 | 90 | 12 |
| CHRSM1205 | 12.05 mm | 4 | 35 | 90 | 12 |
| CHRM0295 | 2.95 mm | 4 | 26 | 80 | 3 |
| CHRM0296 | 2.96 mm | 4 | 26 | 80 | 3 |
| CHRM0297 | 2.97 mm | 4 | 26 | 80 | 3 |
| CHRM0298 | 2.98 mm | 4 | 26 | 80 | 3 |
| CHRM0299 | 2.99 mm | 4 | 26 | 80 | 3 |
| CHR-030 | 3 mm | 4 | 26 | 80 | 3 |
| CHRM0300 | 3 mm | 4 | 26 | 80 | 3 |
| CHRM0301 | 3.01 mm | 4 | 26 | 80 | 3 |
| CHRM0302 | 3.02 mm | 4 | 26 | 80 | 3 |
| CHRM0303 | 3.03 mm | 4 | 26 | 80 | 3 |
| CHRM0304 | 3.04 mm | 4 | 26 | 80 | 3 |
| CHRM0305 | 3.05 mm | 4 | 26 | 80 | 3 |
| CHR-031 | 3.1 mm | 4 | 26 | 80 | 3 |
| CHR-032 | 3.2 mm | 4 | 26 | 80 | 3 |
| CHR-033 | 3.3 mm | 4 | 26 | 80 | 3 |
| CHR-034 | 3.4 mm | 4 | 26 | 80 | 3 |
| CHR-035 | 3.5 mm | 4 | 26 | 80 | 3 |
| CHR-036 | 3.6 mm | 4 | 26 | 80 | 3 |
| CHR-037 | 3.7 mm | 4 | 26 | 80 | 3 |
| CHR-038 | 3.8 mm | 4 | 26 | 80 | 3 |
| CHR-039 | 3.9 mm | 4 | 26 | 80 | 3 |
| CHRM395 | 3.95 mm | 4 | 26 | 80 | 3 |
| CHRM396 | 3.96 mm | 4 | 26 | 80 | 3 |
| CHRM397 | 3.97 mm | 4 | 26 | 80 | 3 |
| CHRM398 | 3.98 mm | 4 | 26 | 80 | 3 |
| CHRM399 | 3.99 mm | 4 | 26 | 80 | 3 |
| CHR-040 | 4 mm | 4 | 26 | 80 | 3 |
| CHRM0400 | 4 mm | 4 | 26 | 80 | 3 |
| CHRM0401 | 4.01 mm | 4 | 26 | 80 | 3 |
| CHRM0402 | 4.02 mm | 4 | 26 | 80 | 3 |
| CHRM0403 | 4.03 mm | 4 | 26 | 80 | 3 |
| CHRM0404 | 4.04 mm | 4 | 26 | 80 | 3 |
| CHRM0405 | 4.05 mm | 4 | 26 | 80 | 3 |
| CHR-041 | 4.1 mm | 4 | 26 | 80 | 4 |
| CHR-042 | 4.2 mm | 4 | 26 | 80 | 4 |
| CHR-043 | 4.3 mm | 4 | 26 | 80 | 4 |
| CHR-044 | 4.4 mm | 4 | 26 | 80 | 4 |
| CHR-045 | 4.5 mm | 4 | 26 | 80 | 4 |
| CHR-046 | 4.6 mm | 4 | 26 | 80 | 4 |
| CHR-047 | 4.7 mm | 4 | 26 | 80 | 4 |
| CHR-048 | 4.8 mm | 4 | 26 | 80 | 4 |
| CHR-049 | 4.9 mm | 4 | 26 | 80 | 4 |
| CHRM0495 | 4.95 mm | 4 | 26 | 80 | 4 |
| CHRM0496 | 4.96 mm | 4 | 26 | 80 | 4 |
| CHRM0497 | 4.97 mm | 4 | 26 | 80 | 4 |
| CHRM0498 | 4.98 mm | 4 | 26 | 80 | 4 |
| CHRM0499 | 4.99 mm | 4 | 26 | 80 | 4 |
| CHR-050 | 5 mm | 4 | 26 | 80 | 4 |
| CHRM0500 | 5 mm | 4 | 26 | 80 | 4 |
| CHRM0501 | 5.01 mm | 4 | 26 | 80 | 4 |
| CHRM0502 | 5.02 mm | 4 | 26 | 80 | 4 |
| CHRM0503 | 5.03 mm | 4 | 26 | 80 | 4 |
| CHRM0504 | 5.04 mm | 4 | 26 | 80 | 4 |
| CHRM0505 | 5.05 mm | 4 | 26 | 80 | 4 |
| CHR-051 | 5.1 mm | 4 | 26 | 100 | 5 |
| CHR-052 | 5.2 mm | 4 | 26 | 100 | 5 |
| CHR-053 | 5.3 mm | 4 | 26 | 100 | 5 |
| CHR-054 | 5.4 mm | 4 | 26 | 100 | 5 |
| CHR-055 | 5.5 mm | 4 | 26 | 100 | 5 |
| CHR-056 | 5.6 mm | 4 | 26 | 100 | 5 |
| CHR-057 | 5.7 mm | 4 | 26 | 100 | 5 |
| CHR-058 | 5.8 mm | 4 | 26 | 100 | 5 |
| CHR-059 | 5.9 mm | 4 | 26 | 100 | 5 |
| CHRM0595 | 5.95 mm | 4 | 26 | 100 | 6 |
| CHRM0596 | 5.96 mm | 4 | 26 | 100 | 6 |
| CHRM0597 | 5.97 mm | 4 | 26 | 100 | 6 |
| CHRM0598 | 5.98 mm | 4 | 26 | 100 | 6 |
| CHRM0599 | 5.99 mm | 4 | 26 | 100 | 6 |
| CHR-060 | 6 mm | 4 | 26 | 100 | 6 |
| CHRM0600 | 6 mm | 4 | 26 | 100 | 6 |
| CHRM0601 | 6.01 mm | 4 | 26 | 100 | 6 |
| CHRM0602 | 6.02 mm | 4 | 26 | 100 | 6 |
| CHRM0603 | 6.03 mm | 4 | 26 | 100 | 6 |
| CHRM0604 | 6.04 mm | 4 | 26 | 100 | 6 |
| CHRM0605 | 6.05 mm | 4 | 26 | 100 | 6 |
| CHR-061 | 6.1 mm | 4 | 26 | 110 | 6 |
| CHR-062 | 6.2 mm | 4 | 26 | 110 | 6 |
| CHR-063 | 6.3 mm | 4 | 26 | 110 | 6 |
| CHR-064 | 6.4 mm | 4 | 26 | 110 | 6 |
| CHR-065 | 6.5 mm | 4 | 26 | 110 | 6 |
| CHR-066 | 6.6 mm | 4 | 26 | 110 | 6 |
| CHR-067 | 6.7 mm | 4 | 26 | 110 | 6 |
| CHR-068 | 6.8 mm | 4 | 26 | 110 | 6 |
| CHR-069 | 6.9 mm | 4 | 26 | 110 | 6 |
| CHRM0695 | 6.95 mm | 4 | 26 | 110 | 6 |
| CHRM0696 | 6.96 mm | 4 | 26 | 110 | 6 |
| CHRM0697 | 6.97 mm | 4 | 26 | 110 | 6 |
| CHRM0698 | 6.98 mm | 4 | 26 | 110 | 6 |
| CHRM0699 | 6.99 mm | 4 | 26 | 110 | 6 |
| CHR-070 | 7 mm | 4 | 26 | 110 | 6 |
| CHRM0700 | 7 mm | 4 | 26 | 110 | 6 |
| CHRM0701 | 7.01 mm | 4 | 26 | 110 | 6 |
| CHRM0702 | 7.02 mm | 4 | 26 | 110 | 6 |
| CHRM0703 | 7.03 mm | 4 | 26 | 110 | 6 |
| CHRM0704 | 7.04 mm | 4 | 26 | 110 | 6 |
| CHRM0705 | 7.05 mm | 4 | 26 | 110 | 6 |
| CHR-071 | 7.1 mm | 4 | 26 | 125 | 6 |
| CHR-072 | 7.2 mm | 4 | 26 | 125 | 6 |
| CHR-073 | 7.3 mm | 4 | 26 | 125 | 6 |
| CHR-074 | 7.4 mm | 4 | 26 | 125 | 6 |
| CHR-075 | 7.5 mm | 4 | 26 | 125 | 6 |
| CHR-076 | 7.6 mm | 4 | 26 | 125 | 6 |
| CHR-077 | 7.7 mm | 4 | 26 | 125 | 6 |
| CHR-078 | 7.8 mm | 4 | 26 | 125 | 6 |
| CHR-079 | 7.9 mm | 4 | 26 | 125 | 6 |
| CHRM0795 | 7.95 mm | 4 | 26 | 125 | 6 |
| CHRM0796 | 7.96 mm | 4 | 26 | 125 | 6 |
| CHRM0797 | 7.97 mm | 4 | 26 | 125 | 6 |
| CHRM0798 | 7.98 mm | 4 | 26 | 125 | 6 |
| CHRM0799 | 7.99 mm | 4 | 26 | 125 | 6 |
| CHR-080 | 8 mm | 4 | 26 | 125 | 6 |
| CHRM0800 | 8 mm | 4 | 26 | 125 | 6 |
| CHRM0801 | 8.01 mm | 4 | 26 | 125 | 6 |
| CHRM0802 | 8.02 mm | 4 | 26 | 125 | 6 |
| CHRM0803 | 8.03 mm | 4 | 26 | 125 | 6 |
| CHRM0804 | 8.04 mm | 4 | 26 | 125 | 6 |
| CHRM0805 | 8.05 mm | 4 | 26 | 125 | 6 |
| CHR-081 | 8.1 mm | 4 | 26 | 135 | 8 |
| CHR-082 | 8.2 mm | 4 | 26 | 135 | 8 |
| CHR-083 | 8.3 mm | 4 | 26 | 135 | 8 |
| CHR-084 | 8.4 mm | 4 | 26 | 135 | 8 |
| CHR-085 | 8.5 mm | 4 | 26 | 135 | 8 |
| CHR-086 | 8.6 mm | 4 | 26 | 135 | 8 |
| CHR-087 | 8.7 mm | 4 | 26 | 135 | 8 |
| CHR-088 | 8.8 mm | 4 | 26 | 135 | 8 |
| CHR-089 | 8.9 mm | 4 | 26 | 135 | 8 |
| CHRM0895 | 8.95 mm | 4 | 26 | 135 | 8 |
| CHRM0896 | 8.96 mm | 4 | 26 | 135 | 8 |
| CHRM0897 | 8.97 mm | 4 | 26 | 135 | 8 |
| CHRM0898 | 8.98 mm | 4 | 26 | 135 | 8 |
| CHRM0899 | 8.99 mm | 4 | 26 | 135 | 8 |
| CHR-090 | 9 mm | 4 | 26 | 135 | 8 |
| CHRM0900 | 9 mm | 4 | 26 | 135 | 8 |
| CHRM0901 | 9.01 mm | 4 | 26 | 135 | 8 |
| CHRM0902 | 9.02 mm | 4 | 26 | 135 | 8 |
| CHRM0903 | 9.03 mm | 4 | 26 | 135 | 8 |
| CHRM0904 | 9.04 mm | 4 | 26 | 135 | 8 |
| CHRM0905 | 9.05 mm | 4 | 26 | 135 | 8 |
| CHR-091 | 9.1 mm | 4 | 31 | 150 | 8 |
| CHR-092 | 9.2 mm | 4 | 31 | 150 | 8 |
| CHR-093 | 9.3 mm | 4 | 31 | 150 | 8 |
| CHR-094 | 9.4 mm | 4 | 31 | 150 | 8 |
| CHR-095 | 9.5 mm | 4 | 31 | 150 | 8 |
| CHR-096 | 9.6 mm | 4 | 31 | 150 | 8 |
| CHR-097 | 9.7 mm | 4 | 31 | 150 | 8 |
| CHR-098 | 9.8 mm | 4 | 31 | 150 | 8 |
| CHR-099 | 9.9 mm | 4 | 31 | 150 | 8 |
| CHRM0995 | 9.95 mm | 4 | 31 | 150 | 8 |
| CHRM0996 | 9.96 mm | 4 | 31 | 150 | 8 |
| CHRM0997 | 9.97 mm | 4 | 31 | 150 | 8 |
| CHRM0998 | 9.98 mm | 4 | 31 | 150 | 8 |
| CHRM0999 | 9.99 mm | 4 | 31 | 150 | 8 |
| CHR-100 | 10 mm | 4 | 31 | 150 | 8 |
| CHRM1000 | 10 mm | 4 | 31 | 150 | 8 |
| CHRM1001 | 10.01 mm | 4 | 31 | 150 | 8 |
| CHRM1002 | 10.02 mm | 4 | 31 | 150 | 8 |
| CHRM1003 | 10.03 mm | 4 | 31 | 150 | 8 |
| CHRM1004 | 10.04 mm | 4 | 31 | 150 | 8 |
| CHRM1005 | 10.05 mm | 4 | 31 | 150 | 8 |
| CHR-101 | 10.1 mm | 4 | 31 | 160 | 10 |
| CHR-102 | 10.2 mm | 4 | 31 | 160 | 10 |
| CHR-103 | 10.3 mm | 4 | 31 | 160 | 10 |
| CHR-104 | 10.4 mm | 4 | 31 | 160 | 10 |
| CHR-105 | 10.5 mm | 4 | 31 | 160 | 10 |
| CHR-106 | 10.6 mm | 4 | 31 | 160 | 10 |
| CHR-107 | 10.7 mm | 4 | 31 | 160 | 10 |
| CHR-108 | 10.8 mm | 4 | 31 | 160 | 10 |
| CHR-109 | 10.9 mm | 4 | 31 | 160 | 10 |
| CHRM1095 | 10.95 mm | 4 | 31 | 160 | 10 |
| CHRM1096 | 10.96 mm | 4 | 31 | 160 | 10 |
| CHRM1097 | 10.97 mm | 4 | 31 | 160 | 10 |
| CHRM1098 | 10.98 mm | 4 | 31 | 160 | 10 |
| CHRM1099 | 10.99 mm | 4 | 31 | 160 | 10 |
| CHR-110 | 11 mm | 4 | 31 | 160 | 10 |
| CHRM1100 | 11 mm | 4 | 31 | 160 | 10 |
| CHRM1101 | 11.01 mm | 4 | 31 | 160 | 10 |
| CHRM1102 | 11.02 mm | 4 | 31 | 160 | 10 |
| CHRM1103 | 11.03 mm | 4 | 31 | 160 | 10 |
| CHRM1104 | 11.04 mm | 4 | 31 | 160 | 10 |
| CHRM1105 | 11.05 mm | 4 | 31 | 160 | 10 |
| CHR-111 | 11.1 mm | 4 | 31 | 160 | 10 |
| CHR-112 | 11.2 mm | 4 | 31 | 160 | 10 |
| CHR-113 | 11.3 mm | 4 | 31 | 160 | 10 |
| CHR-114 | 11.4 mm | 4 | 31 | 160 | 10 |
| CHR-115 | 11.5 mm | 4 | 31 | 160 | 10 |
| CHR-116 | 11.6 mm | 4 | 31 | 160 | 10 |
| CHR-117 | 11.7 mm | 4 | 31 | 160 | 10 |
| CHR-118 | 11.8 mm | 4 | 31 | 160 | 10 |
| CHR-119 | 11.9 mm | 4 | 31 | 160 | 10 |
| CHRM1195 | 11.95 mm | 4 | 31 | 160 | 10 |
| CHRM1196 | 11.96 mm | 4 | 31 | 160 | 10 |
| CHRM1197 | 11.97 mm | 4 | 31 | 160 | 10 |
| CHRM1198 | 11.98 mm | 4 | 31 | 160 | 10 |
| CHRM1199 | 11.99 mm | 4 | 31 | 160 | 10 |
| CHR-120 | 12 mm | 4 | 31 | 160 | 10 |
| CHRM1200 | 12 mm | 4 | 31 | 160 | 10 |
| CHRM1201 | 12.01 mm | 4 | 31 | 160 | 10 |
| CHRM1202 | 12.02 mm | 4 | 31 | 160 | 10 |
| CHRM1203 | 12.03 mm | 4 | 31 | 160 | 10 |
| CHRM1204 | 12.04 mm | 4 | 31 | 160 | 10 |
| CHRM1205 | 12.05 mm | 4 | 31 | 160 | 10 |
| BCHR-125 | 12.5 mm | 4 | 36 | 165 | 12 |
| BCHR-130 | 13 mm | 4 | 36 | 165 | 12 |
| BCHR-135 | 13.5 mm | 4 | 36 | 170 | 16 |
| BCHR-140 | 14 mm | 4 | 36 | 170 | 16 |
| BCHR-145 | 14.5 mm | 4 | 36 | 180 | 16 |
| BCHR-150 | 15 mm | 4 | 36 | 180 | 16 |
| BCHR-155 | 15.5 mm | 4 | 37 | 185 | 16 |
| BCHR-160 | 16 mm | 4 | 37 | 185 | 16 |
| BCHR-165 | 16.5 mm | 6 | 37 | 185 | 16 |
| BCHR-170 | 17 mm | 6 | 37 | 185 | 16 |
| BCHR-175 | 17.5 mm | 6 | 37 | 195 | 20 |
| BCHR-180 | 18 mm | 6 | 37 | 195 | 20 |
| BCHR-185 | 18.5 mm | 6 | 37 | 195 | 20 |
| BCHR-190 | 19 mm | 6 | 37 | 195 | 20 |
| BCHR-195 | 19.5 mm | 6 | 37 | 205 | 20 |
| BCHR-200 | 20 mm | 6 | 37 | 205 | 20 |
| BCHR-205 | 20.5 mm | 6 | 41 | 215 | 20 |
| BCHR-210 | 21 mm | 6 | 41 | 215 | 20 |
| BCHR-215 | 21.5 mm | 6 | 41 | 215 | 20 |
| BCHR-220 | 22 mm | 6 | 41 | 215 | 20 |
| BCHR-225 | 22.5 mm | 6 | 41 | 230 | 25 |
| BCHR-230 | 23 mm | 6 | 41 | 230 | 25 |
| BCHR-235 | 23.5 mm | 6 | 41 | 230 | 25 |
| BCHR-240 | 24 mm | 6 | 41 | 230 | 25 |
| BCHR-245 | 24.5 mm | 6 | 41 | 230 | 25 |
| BCHR-250 | 25 mm | 6 | 41 | 230 | 25 |
| BCHR-255 | 25.5 mm | 6 | 41 | 230 | 25 |
| BCHR-260 | 26 mm | 6 | 41 | 230 | 25 |
| BCHR-265 | 26.5 mm | 6 | 41 | 230 | 25 |
| BCHR-270 | 27 mm | 6 | 41 | 230 | 25 |
| BCHR-275 | 27.5 mm | 8 | 46 | 240 | 32 |
| BCHR-280 | 28 mm | 8 | 46 | 240 | 32 |
| BCHR-285 | 28.5 mm | 8 | 46 | 240 | 32 |
| BCHR-290 | 29 mm | 8 | 46 | 240 | 32 |
| BCHR-295 | 29.5 mm | 8 | 46 | 240 | 32 |
| BCHR-300 | 30 mm | 8 | 46 | 240 | 32 |
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
