Okazaki Milling

Brazed Square End Mills (2F)

Name: Brazed Square End Mills (2F)
Brand: Okazaki

Workpiece material (ISO)

P · SteelK · Cast iron

2-flute brazed-carbide square end mill for machining steel and cast iron. Uncoated, Ø20–50 mm in whole-millimetre sizes (18 catalogue items). Ships in a single coating option. Rated for ISO P/K material classes. Part of Okazaki's milling tool range. Cataloged under the BED order-code prefix.

Ask on Line

Features & uses

Engineered for performance

Brazed-Carbide Substrate, Uncoated

Uncoated — no coating option offered in this line — across all 18 catalogue sizes, catalogued under the BED order-code prefix.

2-Flute Square-End Geometry

A fixed 2-flute square-end profile — the 2-flute counterpart to the 4-Flute Brazed Square Endmills line drafted in this same batch.

Steel & Cast-Iron Coverage

Rated for ISO P (steel) and K (cast iron) material groups.

Ø20–50 mm, 115–240 mm Overall Length

Diameters run Ø20–50 mm in whole-millimetre steps, with overall lengths from 115 to 240 mm across 18 sizes.

Specifications

Sizes & part numbers

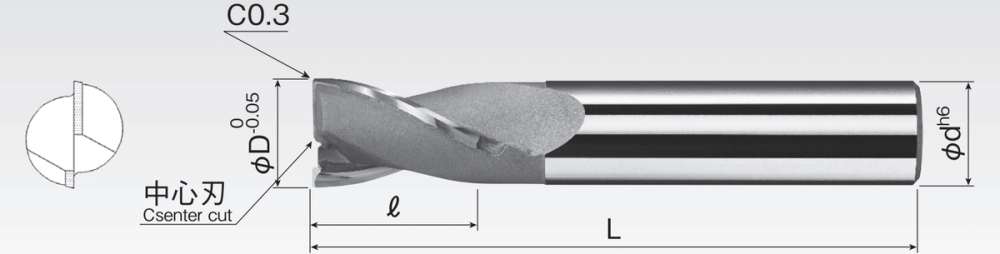

BED2 🔍 Click to zoom

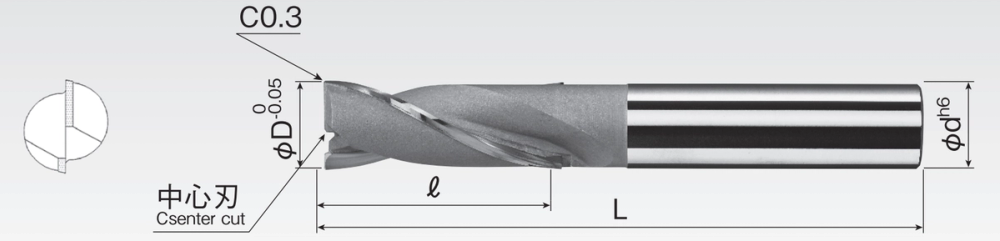

BED2L 🔍 Click to zoom

ORDER NO.	FLUTES	Ø	FLUTE L	OAL	SHANK	COATING
BED2F200	2	20 mm	32	115	20	Uncoated
BED2L200F	2	20 mm	55	140	20	Uncoated
BED2F220	2	22 mm	32	115	20	Uncoated
BED2F250	2	25 mm	40	140	25	Uncoated
BED2L250F	2	25 mm	70	170	25	Uncoated
BED2F280	2	28 mm	40	140	25	Uncoated
BED2F300	2	30 mm	50	150	32	Uncoated
BED2L300F	2	30 mm	85	200	32	Uncoated
BED2F320	2	32 mm	50	150	32	Uncoated
BED2L320F	2	32 mm	85	200	32	Uncoated
BED2F350	2	35 mm	50	150	32	Uncoated
BED2L350F	2	35 mm	85	200	32	Uncoated
BED2F400	2	40 mm	50	150	32	Uncoated
BED2L400F	2	40 mm	100	215	32	Uncoated
BED2F450	2	45 mm	63	160	42	Uncoated
BED2L450F	2	45 mm	100	215	42	Uncoated
BED2F500	2	50 mm	63	160	42	Uncoated
BED2L500F	2	50 mm	125	240	42	Uncoated
