Aluminum Carbide Ball End Mills (2F)
2-flute solid-carbide ball end mill for machining aluminium and other non-ferrous metals, for curved-surface and 3D contour work. DLC-coated, Ø1–25 mm (14 catalogue items). Ships in a single coating option. Rated for ISO N material classes. Part of Okazaki's milling tool range.
Engineered for performance
Solid-Carbide Substrate, DLC Coating
DLC coating is standard — no uncoated option — across all 14 catalogue sizes.
2-Flute Ball-Nose Geometry
A fixed 2-flute full-radius ball-nose profile (corner radii 0.5 to 12.5 mm across the range) for curved-surface and 3D contour work.
Aluminium & Non-Ferrous Specialist
Rated for ISO N (non-ferrous metal) material class only — the aluminium-specific counterpart to the Carbide Ball Endmills 2F line drafted in this same batch.
Ø1–25 mm, 60–180 mm Overall Length
Diameters run Ø1–25 mm, with overall lengths from 60 to 180 mm across 14 sizes.
Sizes & part numbers

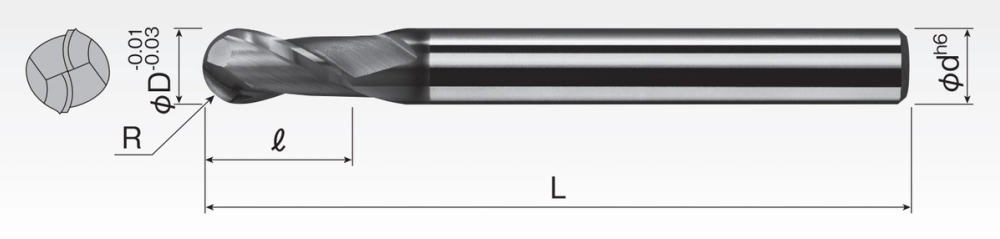

SBD2D 🔍 Click to zoom No sizes match those filters.
Widen a range or clear a field. Need a size not listed? Request a quote →
| ORDER NO. | FLUTES | Ø | CORNER R | FLUTE L | OAL | SHANK | COATING |
|---|---|---|---|---|---|---|---|
| SBD2D010 | 2 | 1 mm | 0.5 | 2 | 60 | 4 | DLC |
| SBD2D015 | 2 | 1.5 mm | 0.75 | 3 | 60 | 4 | DLC |
| SBD2D020 | 2 | 2 mm | 1 | 6 | 70 | 6 | DLC |
| SBD2D030 | 2 | 3 mm | 1.5 | 8 | 70 | 6 | DLC |
| SBD2D040 | 2 | 4 mm | 2 | 8 | 70 | 6 | DLC |
| SBD2D050 | 2 | 5 mm | 2.5 | 12 | 80 | 6 | DLC |
| SBD2D060 | 2 | 6 mm | 3 | 12 | 80 | 6 | DLC |
| SBD2D070 | 2 | 7 mm | 3.5 | 13 | 90 | 8 | DLC |
| SBD2D080 | 2 | 8 mm | 4 | 14 | 90 | 8 | DLC |
| SBD2D100 | 2 | 10 mm | 5 | 18 | 100 | 10 | DLC |
| SBD2D120 | 2 | 12 mm | 6 | 22 | 110 | 12 | DLC |
| SBD2D160 | 2 | 16 mm | 8 | 30 | 140 | 16 | DLC |
| SBD2D200 | 2 | 20 mm | 10 | 38 | 160 | 20 | DLC |
| SBD2D250 | 2 | 25 mm | 12.5 | 55 | 180 | 25 | DLC |
Get pricing & availability
Send us the size and quantity, our team replies with a quote and lead time within one business day.
